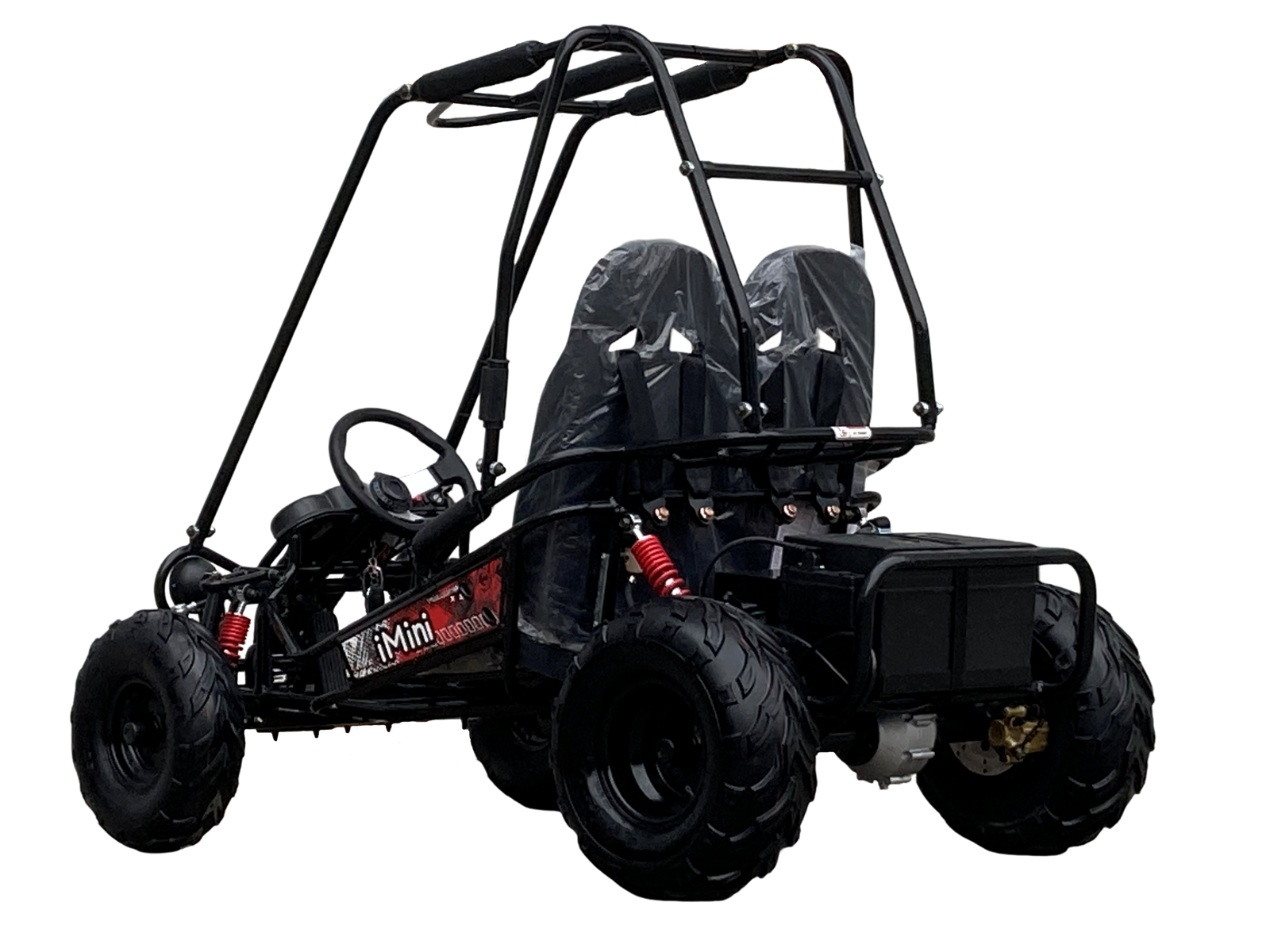

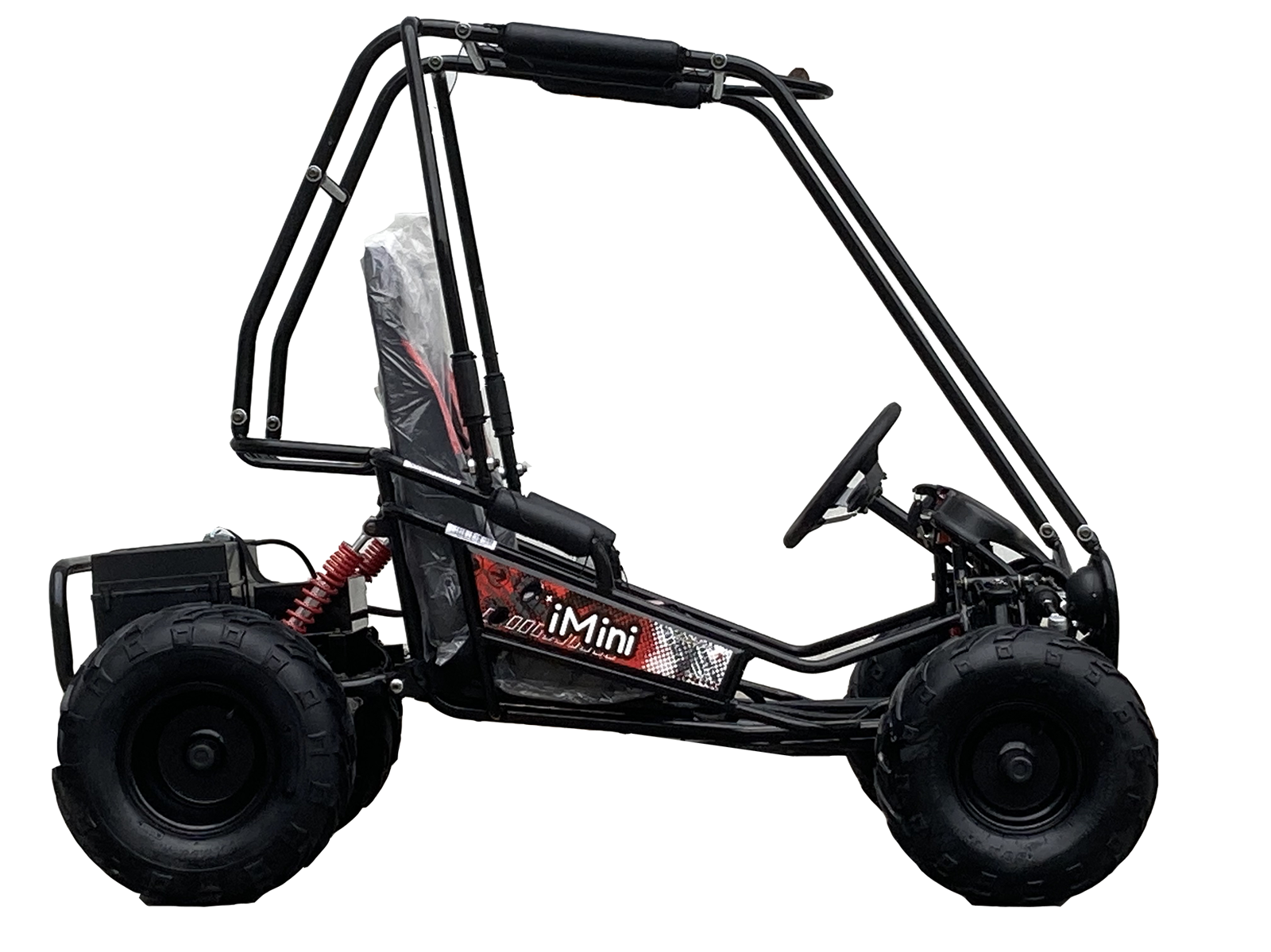

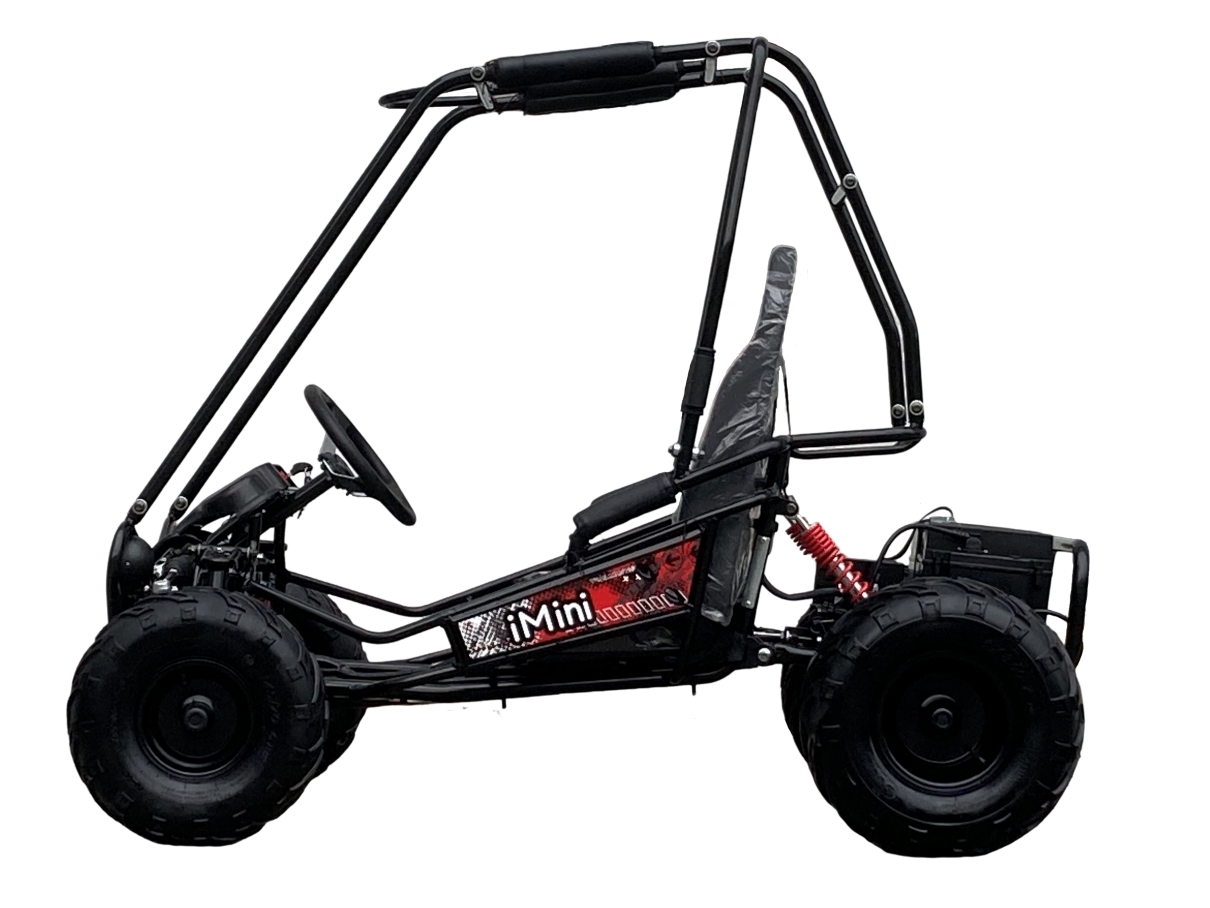

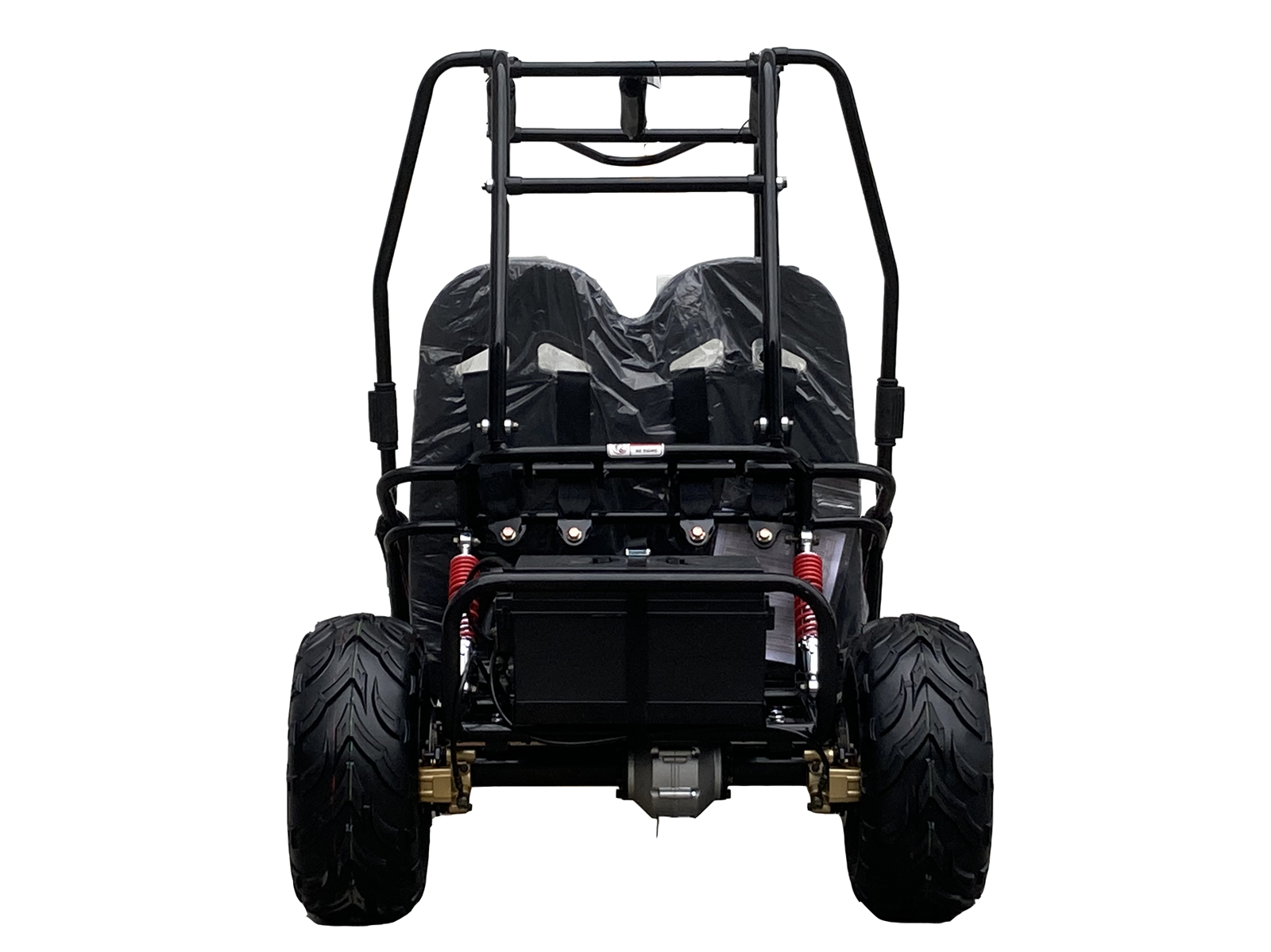

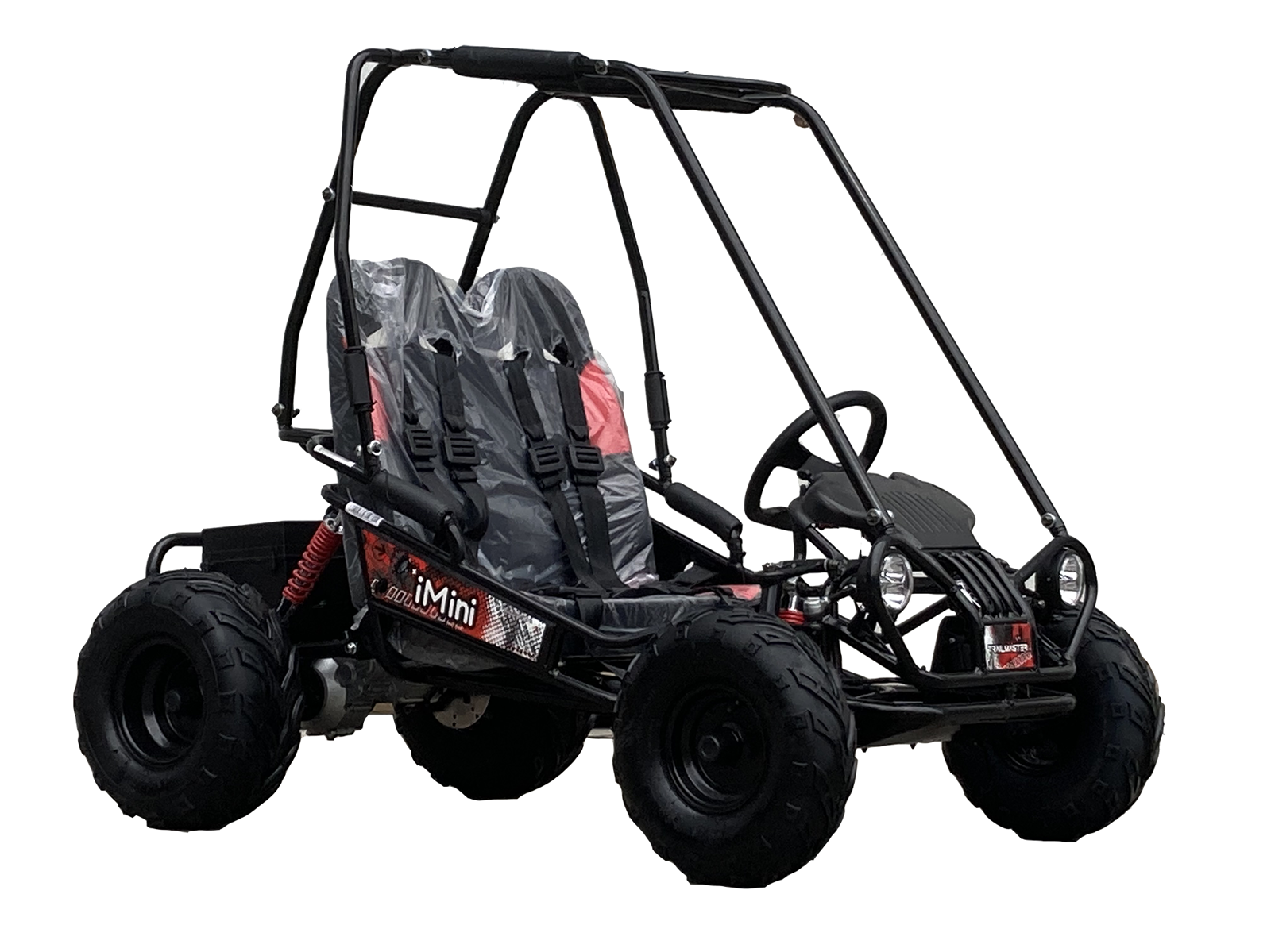

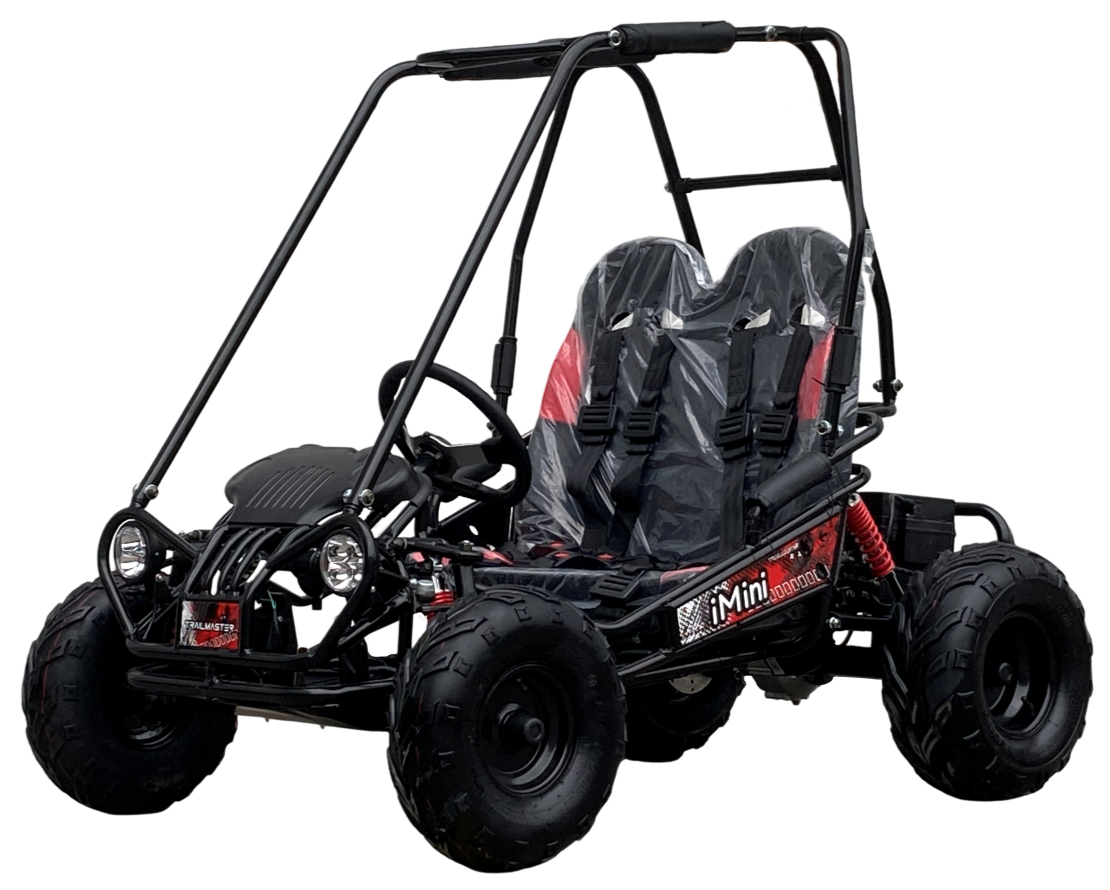

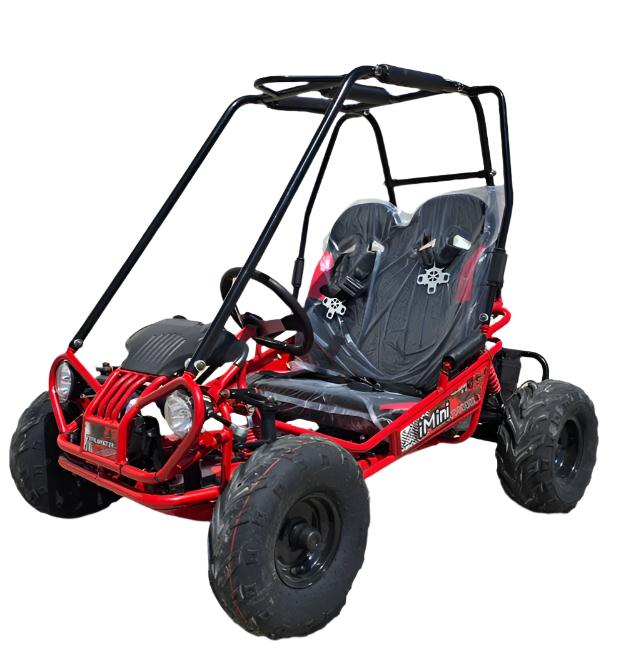

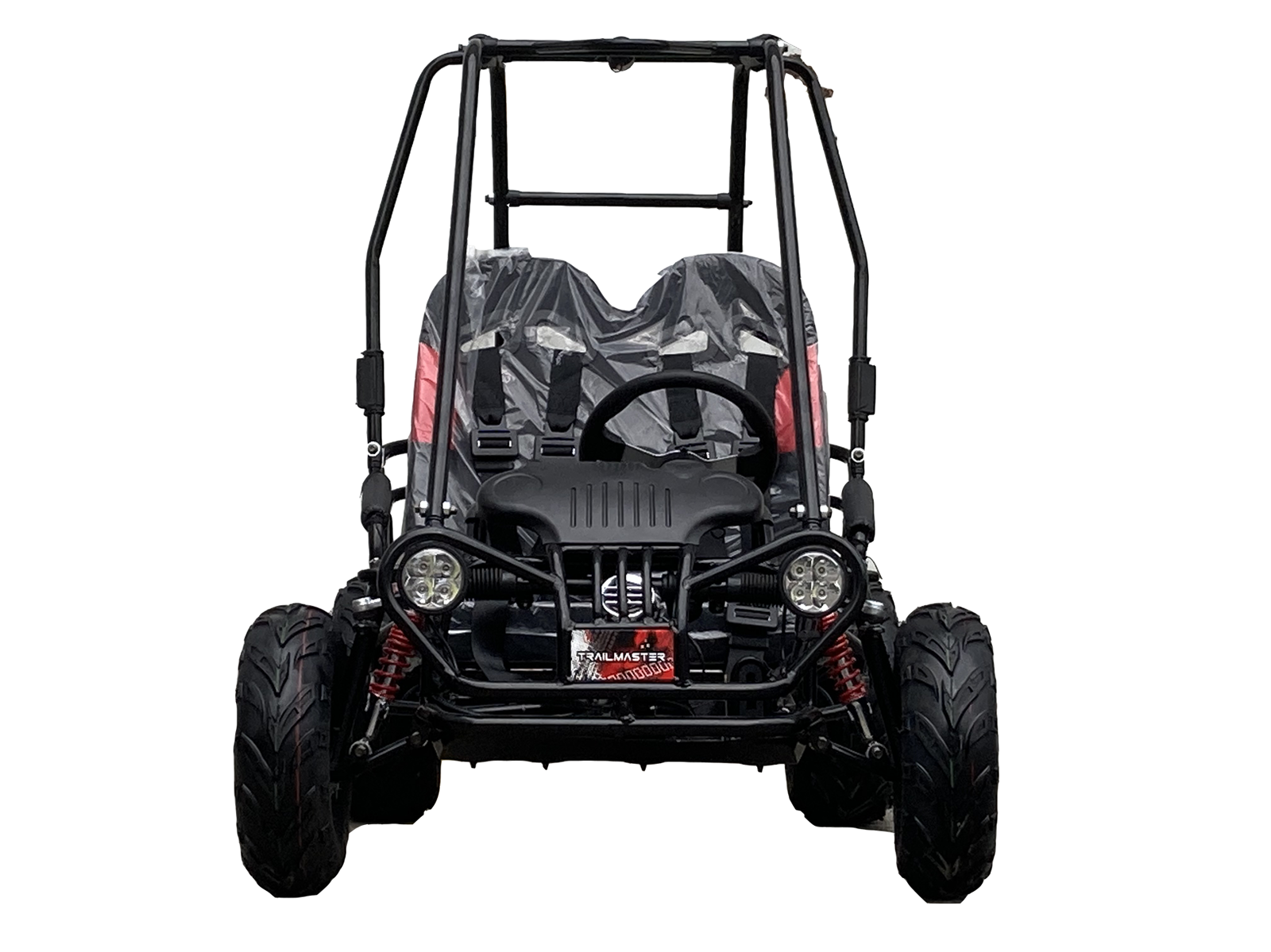

TrailMaster iMini Kids Electric Go Kart, Reverse, 48v, 2-speed settings, Kids Ages 4-9
"Unleash your child’s adventurous spirit with the Trailmaster iMini, an all-electric go-kart with a 48V battery for a range of up to 30 miles. This fully automatic kart features a digital monitor, safety brake, and two driving modes for maximum fun. Plus, with LED headlights and a 5-point safety harness, they'll be ready for any terrain!"
Introduce your little adventurer to the ultimate thrill ride with the Trailmaster iMini electric go-kart. With a max speed of 18 mph (and a low-speed option for beginners), full roll cage, and advanced steering and suspension, this kart will keep your child safe and smiling for up to 30 miles on a single charge.
The iMini is the same physical size as our Mini XRX/R+. This iMini equips with 48V 1.2KW electric motor and 48V 20Ah battery. Fully automatic with reverse iMini offers 2 forward driving mode: with “H” mode top speed 18mph; with “L” mode top speed at 12mph; Full charge can go up to 30 miles.
Key Features
- Powered by 48V, 20A battery

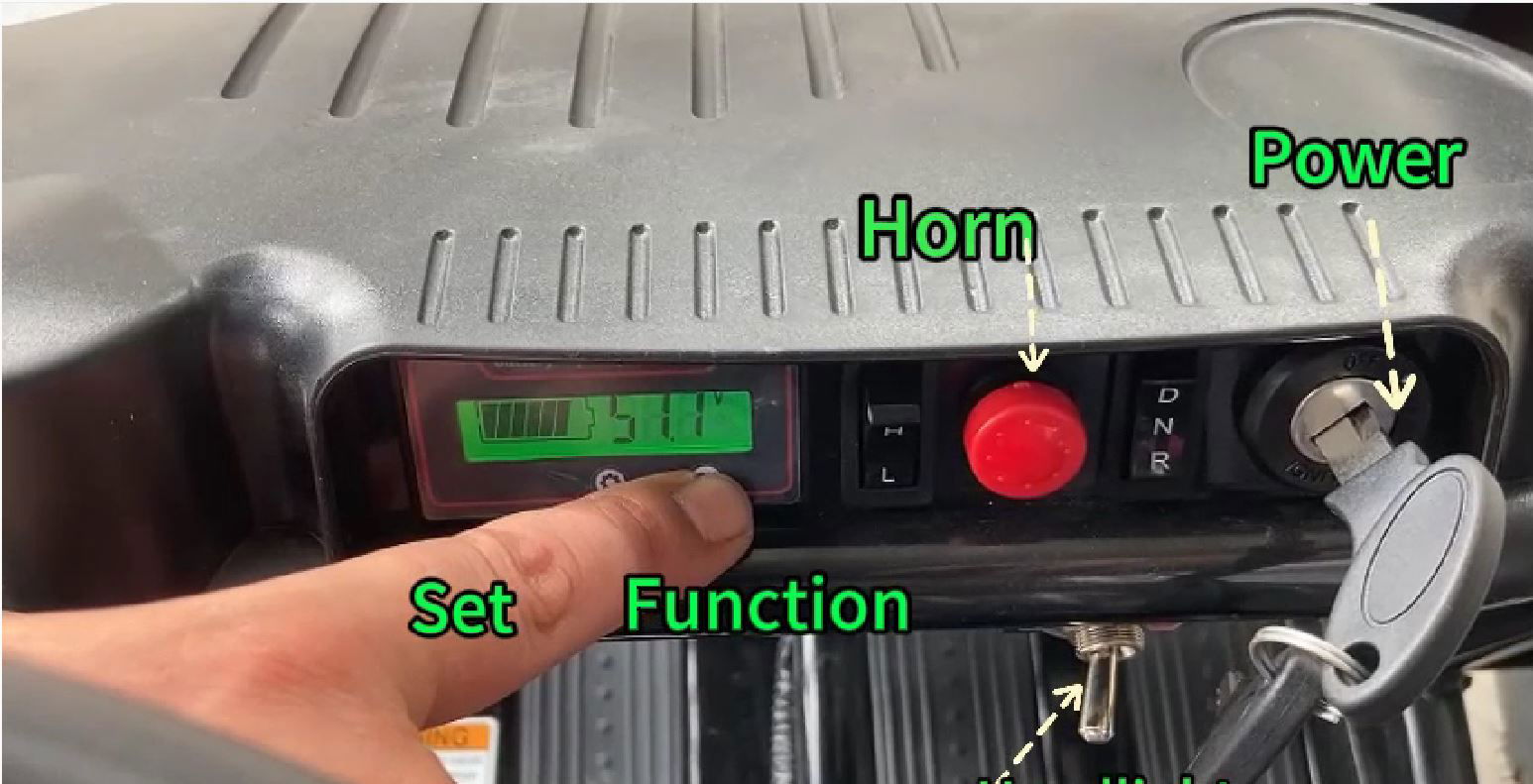

- Digital monitor
- Fully automatic with reverse
- Driver has to hit brake in order to engage throttle pedal for safety
- Offers two driving mode: with “H” mode top speed only 18M/h; with “L” mode top speed 12M/h
- Strong low-end torque and able to climb 15 degrees slope
- Driving range up to 30miles
- 5-Point safety harness seatbelt
- Remote Start/Kill
- LED headlight
- Horn
- Big tires: F / R: 145/70-6 / 16x8-7
- Rack and pinion steering wheel
- Hydraulic disc brake
- Padding over roll cage
- Adjustable sports seat: pedal to seat back adjust
Battery Information
- Battery: Lead Acid Battery
- Nominal Voltage: 48V
- Rated Capacity 20Ah
- Charging Temperature Range: 32 °F to 104 °F
- Storage Temperature Range: 5 °F to 104 °F
- Charging Time: 6-8h
- Range: 30 miles max depending on weight, speed and driving conditions.
- Battery model: 6-DZF-12
- Battery Warranty: 6 months Limited warranty
Electric Motor Information
- Service Voltage: 48V
- Rated Power: 1.2KW
- Rated Speed: 3800RPM
- Rated Current: 14A
- Max Torque: >=8Nm
- Current limit: 30A
General Information
- Suspension, F / R: Double A-arm / Double Oil Damped Shock
- Brakes: Rear Hydraulic Disc brake
- Tires, F / R: 145/70-6 / 16x8-7
- Weight, G.W. / N.W.: 273 / 225 lbs.
- Max load: 330 lbs.
- Driving Mode: R-N-D
- Max speed: 12mph on “L” mode; 18 mph on “H” mode
- Climbing ability: 15 degrees
Dimension Information
- Wheelbase: 42 inches
- Height to seat: 10.2 inches
- Min ground clearance: 2.8 inches
- Pedal to seat back distance: 30 to 35 inches
- OA L x W x H: 67x44x51.2 inches
- Crate size: 60X30X21 inches
