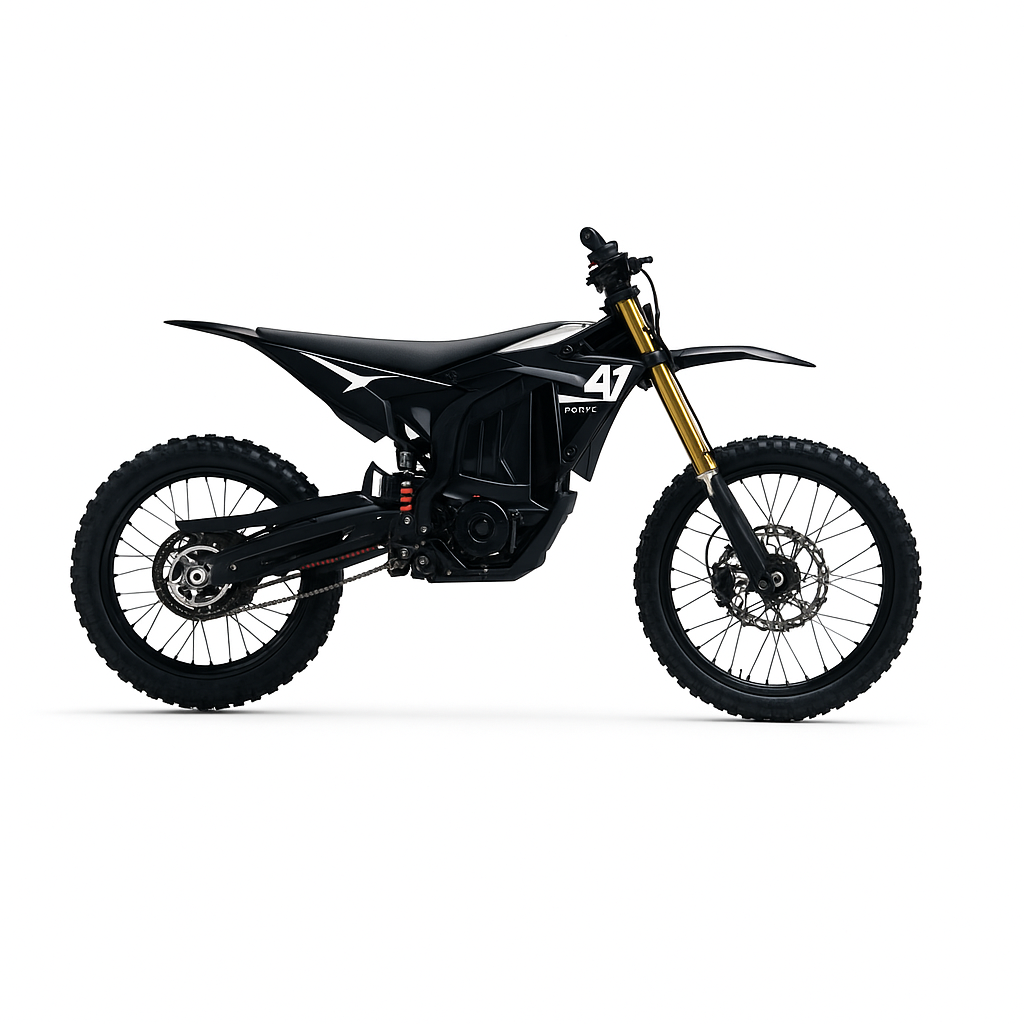

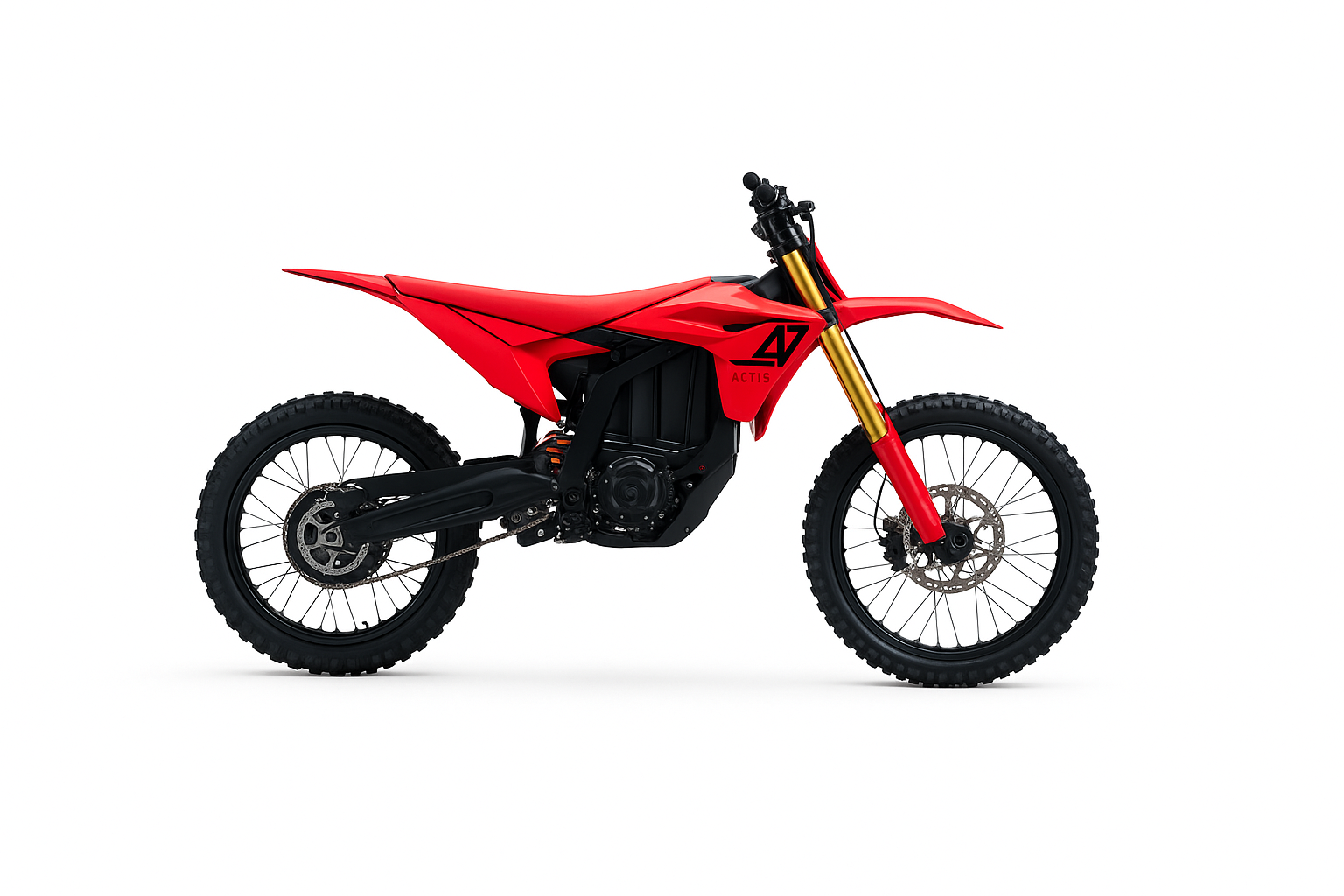

Altis Sigma MX Limited MX - 22,000W

Altis Sigma E-Moto

Built on a high-voltage platform with a 22 kW hairpin motor and a 97.2 V Samsung 50S battery, the Altis Sigma delivers serious electric performance with adjustable off-road suspension, 5-level regenerative braking, and a 3.5" TFT display with NFC.

The Limited Difference:

• Upgraded BMS: Improved battery efficiency and reliability with up to 10% more range
• Higher RPM: Boosted motor speed from 7800 to 8300 RPM
• Increased Torque: 4% more torque raised for stronger acceleration
• New Throttle tune: Enhanced modulation and smoother power delivery for better off-road control more aggressive in race

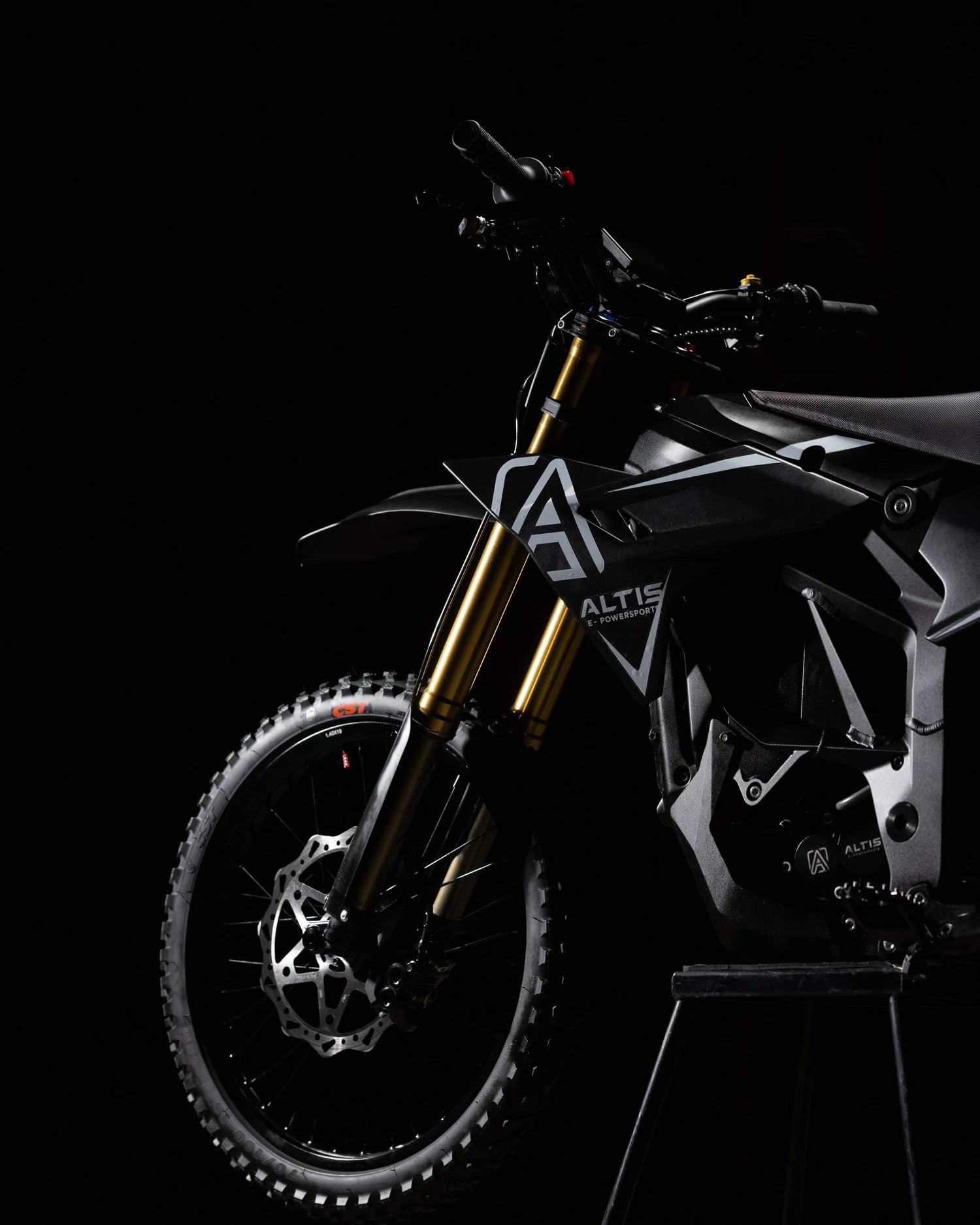

• New Front suspension: Dual spring front suspension
• Dust Seals: in rear suspension linkage
• New front wheel hubs, on wheels for more strength and stability

Specifications

Powertrain

• Electric motor: Hairpin motor (automotive standard), 98 V

• Max power: 22 kW

• Motor torque: 72 Nm

• Regenerative braking: 5 levels

• Cooling: Air-cooled

Battery & Charging

• Battery: 97.2 V 35 Ah (3,402 Wh) Samsung 50S cells — Greenway battery pack (ALTIS PowerPack)

• Charging input: AC110 V / 112 V 12.5 A

• Charging time (20% → 80%): 2 hours (≈120 min)

• Charging time (20% → 100%): 180 min

• Energy content: 3.402 kWh

Chassis, Brakes & Suspension

• Frame: Aluminum alloy forging

• Weight (with battery): 88 kg

• Wheelbase: 1,285 mm

• Ground clearance: 300 mm*

• Seat height: 840 mm

• Steering head angle: 26°

• Front suspension travel: 200 mm (adjustable off-road air-spring)

• Rear shock stroke: 85 mm with linkage

• Rear wheel travel: 200 mm with linkage

• Front brake disc: 260 mm

• Rear brake disc: 220 mm

• Chain: 428H

Wheels & Tires

• Wheels: Spoked wheels with aluminum rims

• Tires: CST off-road tires

• MX configuration: 19" front / 16" rear, 601 N·m torque (44T sprocket)

Electronics & Lighting

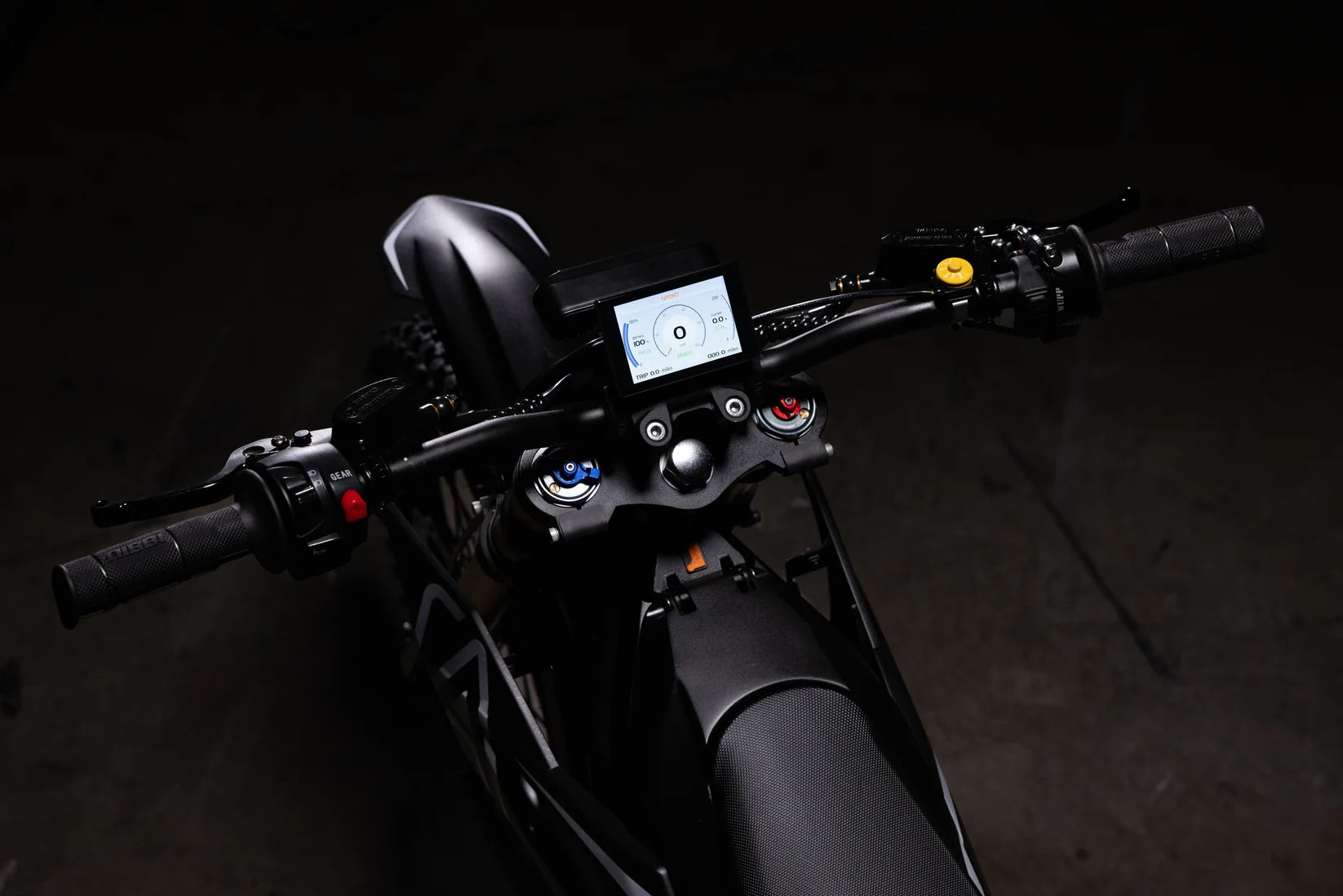

• Display: 3.5" TFT with NFC feature

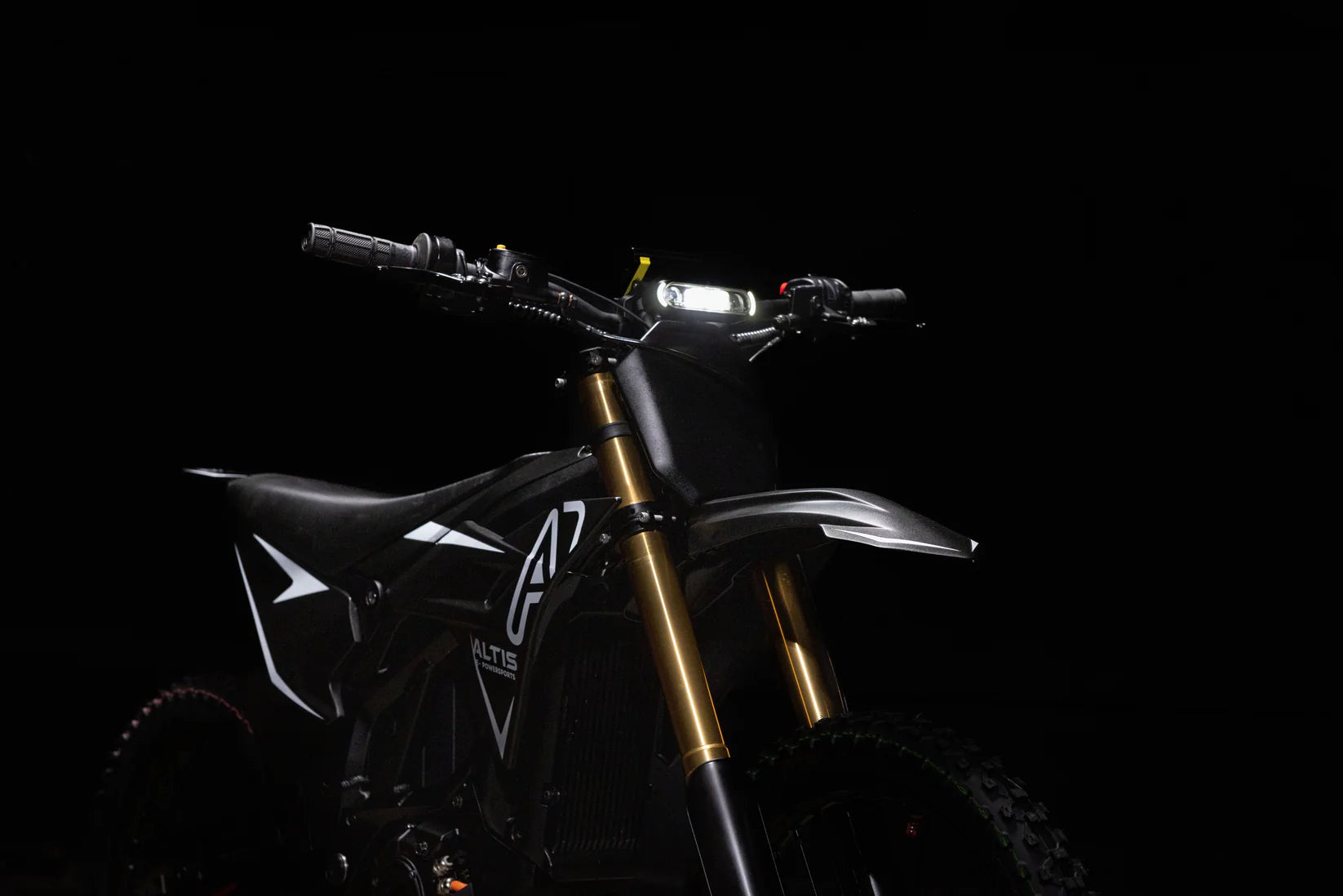

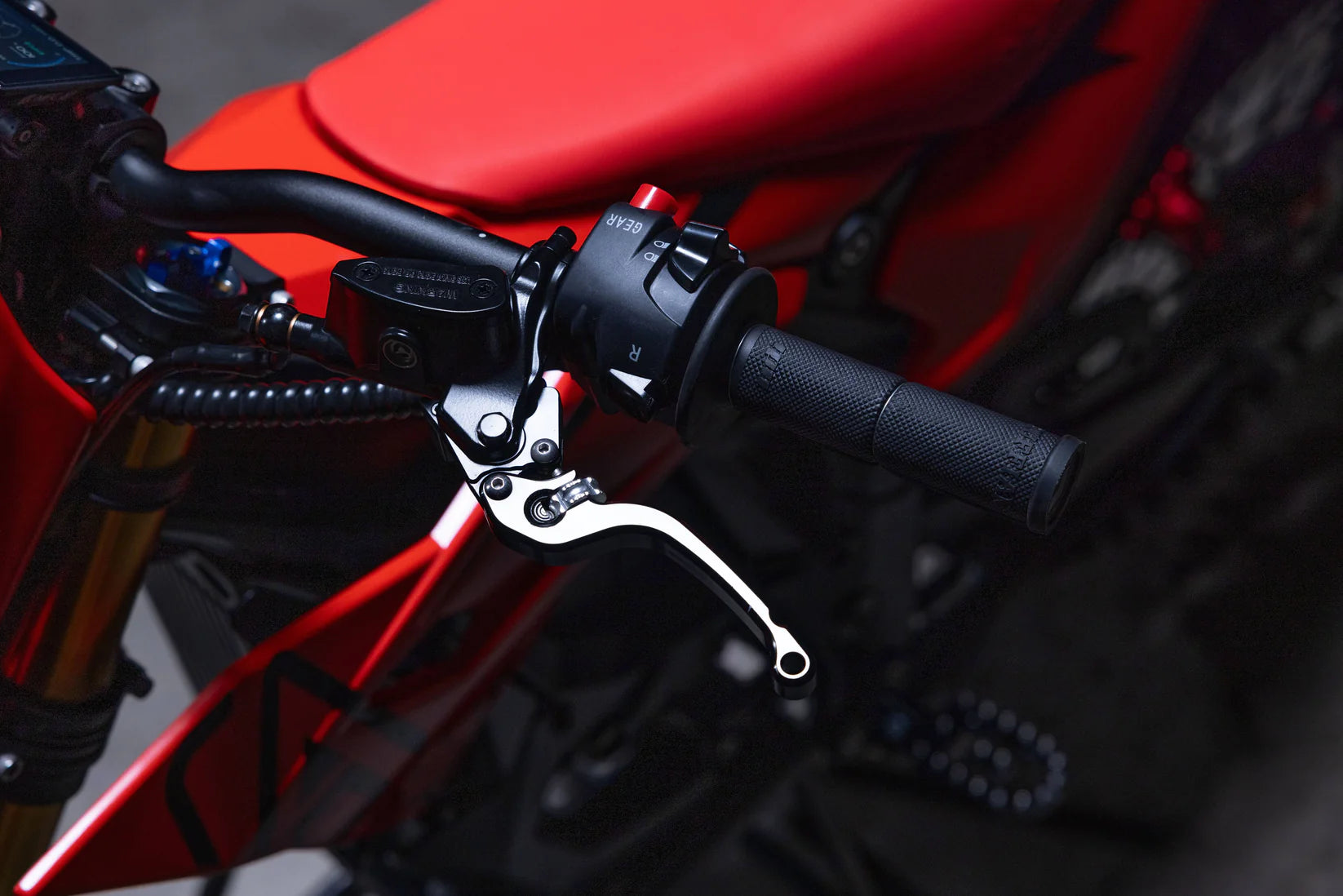

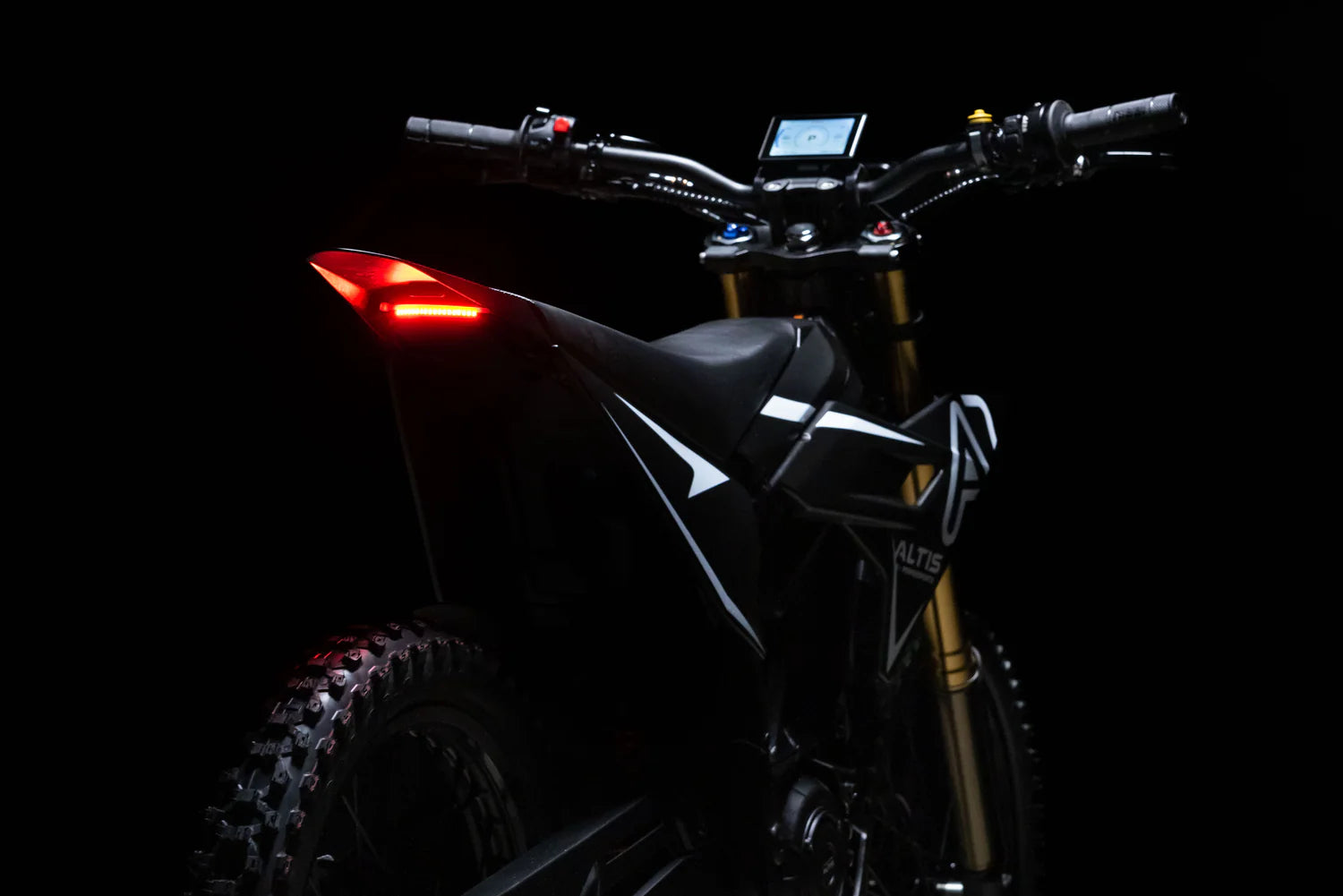

• Lighting: Headlight & taillight with brake light; handlebar switchgear

Order Policy

• Cancellation fee: 5% applies to all orders

Ground clearance provided as “300m” in source materials; shown here as 300 mm for clarity.
